SRD2-212.002U
Wall-mounted programmable indoor dual loop controller and transmitter (X2 OS) with temperature and humidity sensor with optional CO2-sensor, color display, PIR sensor. 2 universal analog inputs (RT/DI/VDC/mA) and 2 universal outputs (VDC/mA)
The SRD2 is a programmable controller and transmitter with communication capabilities. Each control loop may use 2 PI sequences and 2 binary stages. The SRD2 comes with a built-in isolated RS485 communication interface that allows peer-to-peer communication with an operation terminal such as OPT1-(2TH)-VC. An optional built-in color display and touch buttons provides a perfect and flexible way to interact with the user.
Communication supports Modbus.
Complete parameter sets may be copied by use of an accessory called AEC-PM2 or exchanged with a PC and the EasySet program using an RS485-USB converter or via Wi-Fi.
The SRD2 uses the Vector Controls universal and flexible X2 operating system and is preconfigured as described in the manual.
Applications
- Ventilation control
- Temperature control
- Air humidifier and dehumidifier
- CO2 air quality control
- Motion detection action
Type Overview (see ordering for details)
| SRD2 with display and IR sensor |
SRD2 without display and IR sensor |
|
-OPIR |
|

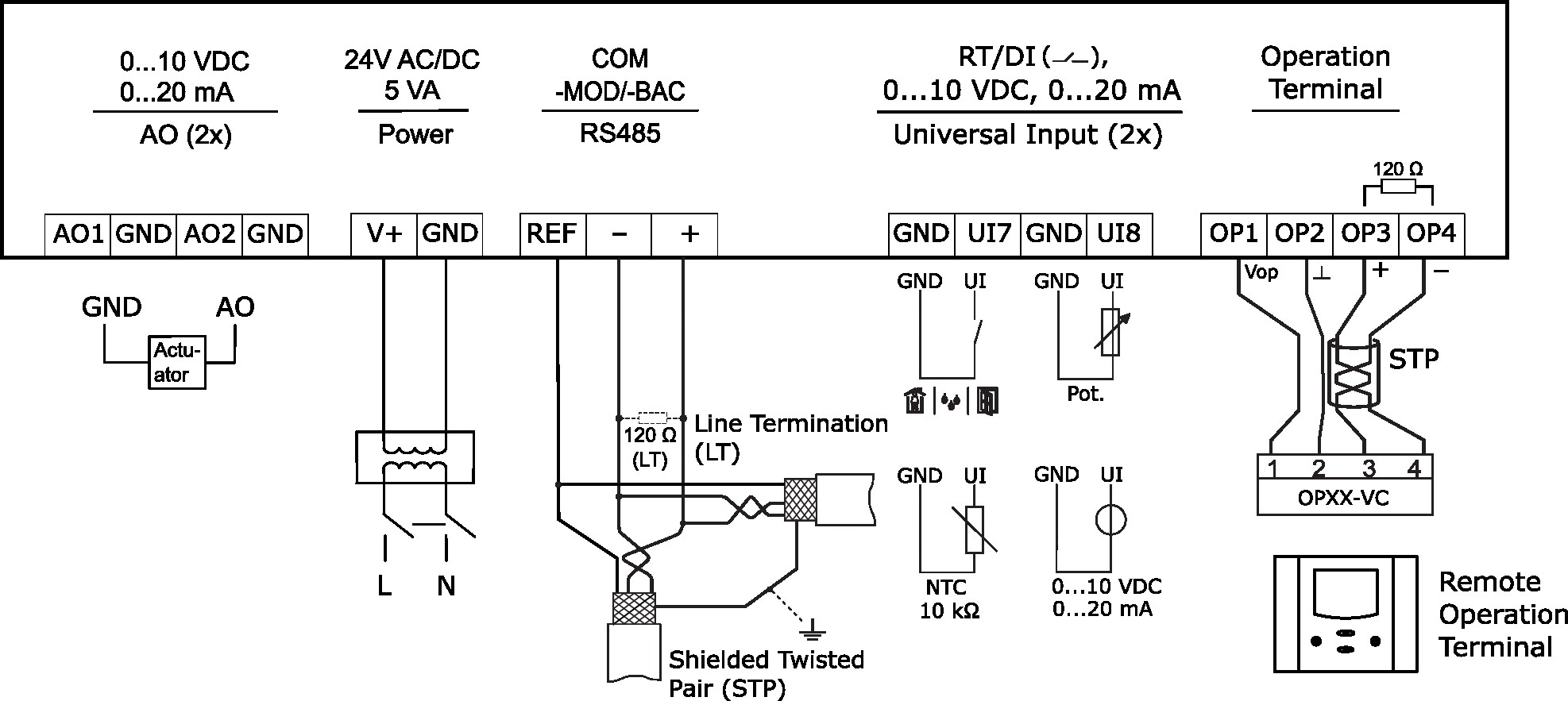

Connections
Dimensions, mm (inch)
Features
- Two universally configurable control loops:
- Functions for dehumidifying, set point shift and cascade control
- Multiple auxiliary functions: heat-cool auto changeover, automatic enable, set point compensation
- Free heating and cooling with economizer function based on enthalpy or temperature
- Differential, averaging, min and max functions, enthalpy and dew point calculations
- Transmitter function for sensors and set points
- Measures:
- Temperature
- Humidity
- CO2
- VOC air quality
- Dust particles (PM1.0, PM2.5, PM10)
- A passive infrared sensor (-IR type) which can be used for motion detection (occupied / unoccupied)
- Color display with backlight and touch button operation (-OP type)
- Built-in humidity and temperature sensor (-TH type), CO2 sensor (-C type), VOC sensor (-Q type),
dust particle sensor (-D type) - 2 universal inputs (NTC, VDC, mA)
- 2 universal outputs (VDC/mA)
- 8 freely assigned alarm conditions, selectable state of outputs and sounds on alarm condition
- Serial Modbus RTU/ASCII via isolated RS485
- Password protected programmable user and control parameters
- EasySet access over TCP/IP for configuration (Wi-Fi interface required)
