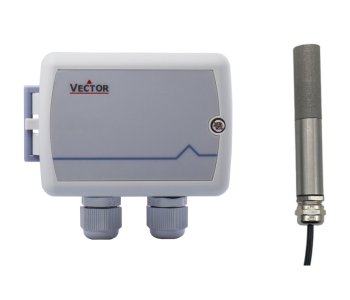

SCC-H1T1-R2 - Remote Probe

Image description

Smart humidity / temperature transmitter with remote probe

From data centers and supply air ducts to industrial processes and aggressive chemical environments – the SCC-H1T1-R2 delivers precision humidity and temperature measurement where others give up.

The SCC-H1T1-R2 measures relative humidity with a unique capacitive sensor element while temperature is measured by a band-gap sensor. The applied measuring technology guarantees excellent reliability and long term stability.

Applications

  • Humidity and temperature measurement for supply and return air ducts.
  • Data center environment monitoring
  • Recording of minimum and maximum values for critical environments
  • Supervision of critical humidity and temperatures
  • Measurements in high humidity environments

Features

  • Precision humidity and temperature measurement with remote probe
  • Distance of probe to transmitter up to 20 m.
  • Sensor reconditioning function against contamination
  • Anti-Creep function for high humidity environments
  • Minimum and maximum temperature memory
  • 0…10V, 0…20mA or 2…10V, 4…20mA measuring signal output, selectable with jumpers
  • DIP switch for temperature range pre-set
  • Alternative temperature signal ranges programmable (operation terminal)
  • Selectable averaging filter for the measurement signal
  • Optional LCD display (OPC-S) or external display (OPA-S / OPU-S)
  • Status LED
  • Modbus RTU/ASCII RS485 for monitoring and configuration
  • Copy of settings with accessory (AEC-PM2)
  • Automatic device address increment when copying settings (AEC-PM2)

Ordering

 Item name  Item code   Description
 SCC-H1T1-R2-A3-1  40-300339



  Signal converter with remote probe,
  incl. cable gland AMC-1 and temperature
  sensor element AES4-HT-A3 (3% RH)


 SCC-HT-MOD-R2-A3-1   40-300340
